Emergency Lighting System Features :
Emergency lighting is a vital and effective life safety tool, proviing reassurance and guidance to people at critical times when they need to escape quickly and safely from a building.

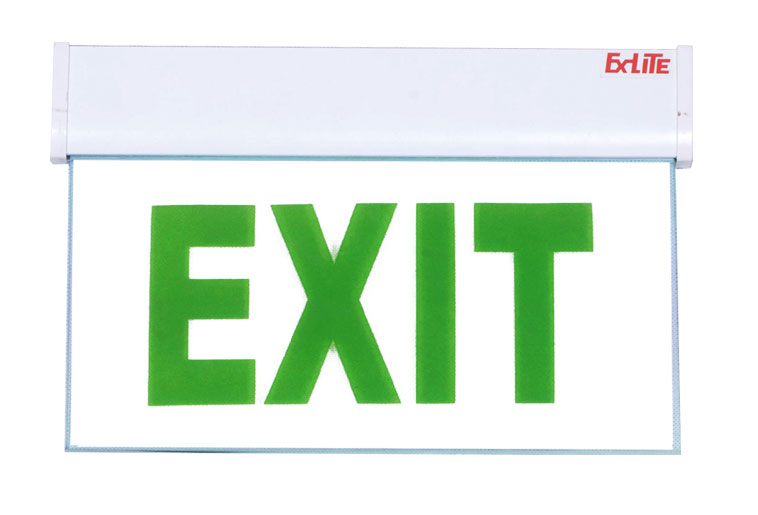

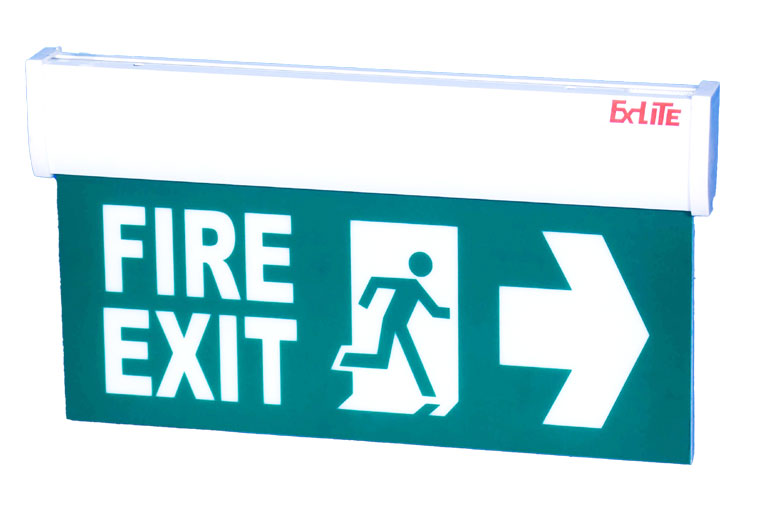

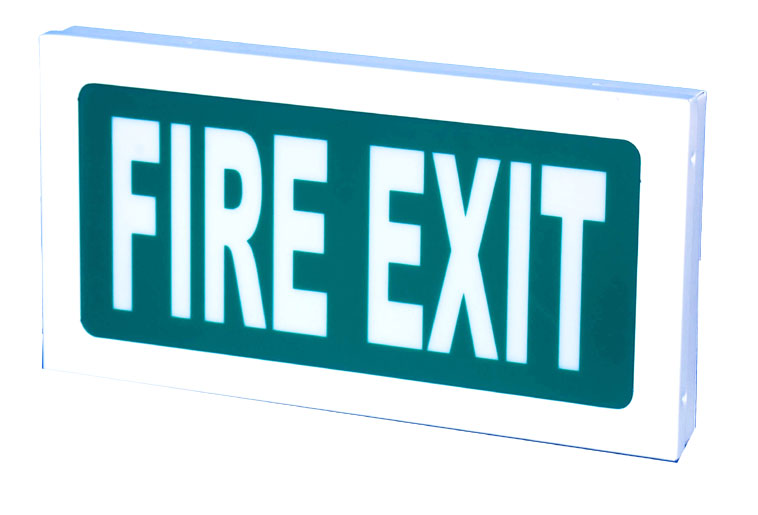

Exlite series emergency LED exit signages get switched on upon failure of main power supply and provides illumination through the battery source for a standard duration of 2 hours. It automatically gets recharged upon resumption of main power supply.
- Aesthetically designed with care and elegance
- Highest quality and standards.
- Uniformly illuminated without hot spots, giving the luminaire a flawless finish.
- Clear frame and low profile ensures seamless integration into the surrounding architecture.
![Wall Mount Wall Mount](https://www.briotronix.com/jb-content/uploads/2022/03/wall-mount.jpg)
Wall Mount
![Ceiling Mount Ceiling Mount](https://www.briotronix.com/jb-content/uploads/2022/03/ceiling-mount.jpg)
Ceiling Mount
Technical Specifications :
Type | Wall Mount | Ceiling Mount |
---|---|---|
Model No | EXL - LED - W | EXL - LED - C |
Body | C.R.C.A Sheet Steel - 22 S.W.G | Made up of uniformly extruded aluminium alloy |
Message Panel | CAD Designed & Cut vinyl on 2 M. M. thick milky White acrylic panel. | CAD Designed printing / itching / engraving on 10 M. M. clear acrylic sheet |
Dimensions | 360 mm (W) * 180 mm (H) | 300 mm (W) * 180 mm (H) |
Ingress Protection | IP - 20 | |
Paint & Colour | Epoxy polyester powder coating / white in color | Epoxy polyester powder coating / White in color |
Input | ~ 230 Volts, 50 Hz. | |
Mains Connector | 5A, 250 Volts, Polycarbonate with electrical grade brass contacts. | 5A, 250 Volts, PCB Mount with electrical grade brass contacts. |
Mounting | On wall through 2 Nos. of Holes | Ceiling with 2 Nos. of hooks |
Confirms to | IS: 9583 - 1981. | |
Weight | ~ 1 kg | ~ 2 kg |
Tube Type | Multiple LED's | |
Lamp | 5W | |
LED Make | Seoul/Osram/Lumiled/Ever Light | |
Type | Rechargeable; Ni-Cd / Ni-Mh | |
Duration | 120 minutes backup; + 10% | |
Recharging Cycle | 16 - 24 hours recharging period |
